تفاصيل المنتج:
شروط الدفع والشحن:
|
| رقم النموذج: | GZP55 | مادة: | الفولاذ المقاوم للصدأ |
|---|---|---|---|
| الضغط الرئيسي: | 100kn | ما قبل الضغط: | 20kn |
| نظام التحكم: | PLC وشاشة تعمل باللمس | جهاز التغذية: | وحدة تغذية القوة |
| نظام التشحيم: | نظام تشحيم أوتوماتيكي | قوة المحرك: | 11kw |
| أقصى قرص قطر: | 25 ملم | القدرة الإنتاجية: | 396000pcs/h |
| سرعة برج الحد الأقصى: | 60 ص / دقيقة | أقصى عمق ملء: | 15mm |
| أقصى سمك الجهاز اللوحي: | 6 مم | الحجم الكلي: | 1370*1170*1800mm |
| وزن الآلة: | 3200 كجم | ||
| إبراز: | 100kN Main Pressure Rotary Tablet Press,20kN Pre-Pressure Tablet Press Machine,396000PCS/H Production Capacity High Speed Tablet Press,20kN Pre-Pressure Tablet Press Machine,396000PCS/H Production Capacity High Speed Tablet Press |
||

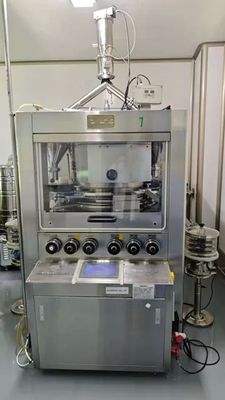

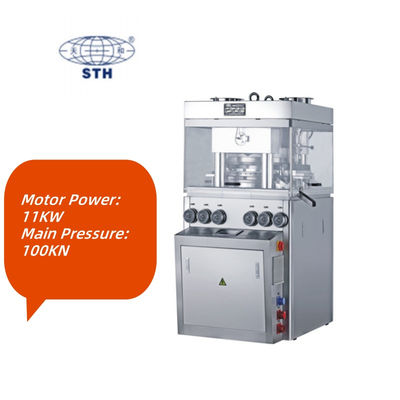

This double-sided rotary tablet press machine processes granular materials into round, irregular, or double-side engraved tablets. It serves pharmaceutical, chemical, food, and electronic industries.
| Model | GZP-35 | GZP-43 | GZP-51A | GZP-51B | GZP-55 |
|---|---|---|---|---|---|
| Number of stations | 35 | 43 | 51 | 51 | 55 |
| Tooling Standard | D | B | BB | ZP | BBS |
| Max Tablet Diameter (mm) | 25 (round) 25 (irregular) | 18 (round) 19 (irregular) | 13 (round) 16 (irregular) | 13 (round) 16 (irregular) | 11 (round) 13 (irregular) |
| Max Filling Depth (mm) | 20 | 18 | 15 | 15 | 15 |
| Max Production Capacity (pcs/h) | 252,000 | 309,600 | 367,200 | 367,200 | 396,000 |
| Motor Power (kw) | 7.5 | ||||
| Machine Weight (kg) | 3200 | ||||
A: Our factory is in Shanghai's Chongming District. We welcome visits with prior arrangement.
A: Send samples for testing - we'll provide videos, photos, or live demonstrations.
A: We recommend using Trade Assurance Service to protect your transaction.
A: 1-year warranty with 24-hour technical support and lifetime service commitment.
A: Use the contact information on this page (email, WeChat, WhatsApp, phone).
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is an innovative manufacturer with 30+ years experience, exporting to 70+ countries. We provide complete solutions for pharmaceutical and food processing equipment.
As a high-tech enterprise, we control all manufacturing processes from casting to final assembly. We emphasize quality control and customized solutions based on customer requirements analysis.
Our machines feature:
