High Speed Rotary Tablet Press with 355200 PCS/H Capacity, 20kN Pre-Pressure and 37 Stations for Pharmaceutical Production
مفصلة وصف المنتج
| رقم النموذج: |
GZPK520-37 |
مادة الآلة: |
الصلب الكربوني ، الفولاذ المقاوم للصدأ |
| محطات الأرقام: |
37 |
ماكس الضغط الرئيسي: |
100 كيلو نيوتن |
| ماكس ما قبل الضغط: |
20 كيلو نيوتن |
قدرة الإنتاج القصوى: |
355200 PCS/H. |
| قوة المحرك: |
11 كيلوواط |
أقصى قرص قطر: |
25 ملم |
| أقصى عمق ملء: |
20 ملم |
أقصى سمك الجهاز اللوحي: |
8 ملم |
| سرعة برج الحد الأقصى: |
80 ص / دقيقة |
الحجم الكلي: |
1420*1200*1850 ملم |
| وزن الآلة: |
3500 كجم |
معيار الأدوات: |
د |
| نظام التغذية: |
وحدة تغذية القوة |
| إبراز: |
355200 PCS/H Rotary Tablet Press,20kN Pre-Pressure Rotary Tablet Press,37 Stations High Speed Tablet Press, 20kN Pre-Pressure Rotary Tablet Press, 37 Stations High Speed Tablet Press |

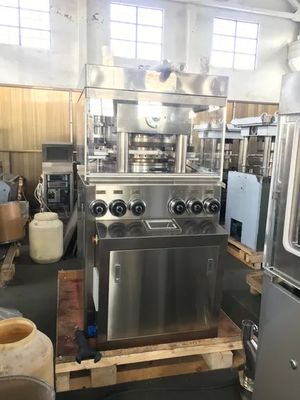

GZPK520 (37) High Speed Rotary Tablet Press Machine
Application
This double-sided rotary tablet press machine transforms granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, food, and electronic industries.
Technical Features
- High-speed operation with multiple punches and double press rollers for mass production
- Stainless steel construction with fully enclosed housing and hardened rotary turret surface for wear resistance (GMP compliant)
- Advanced tableting system with twice compression forming for consistent tablet weight
- Double impeller force feeder enhances granule flow and filling precision
- Double-side lifting tooling track for balanced punch stress and durability
- High-performance electrical control system for precise operation
- Automatic central lubrication system extends machine lifespan
- Specialized oil-proof, dust-proof, and noise-proof design
Note
The GZPK520 series records all process parameters for production batches, facilitating operator control. Features advanced operation and tablet weight control systems for precise hardness and weight adjustment.
Main Technical Specifications
| Model |
GZPK-37 |
| Number Stations |
37 |
| Tooling Standard |
D |
| Max Main Pressure (KN) |
100 |
| Max Pre-pressure (KN) |
20 |
| Max Tablet Diameter (mm) |
25 (Round/Irregular) |
| Max Filling Depth (mm) |
20 |
| Max Tablet Thickness (mm) |
8 |
| Max Turret Speed (r/min) |
80 |
| Max Production Capacity (pcs/h) |
355,200 |
| Motor Power (kw) |
11 |
| Overall Size (mm) |
1420×1200×1850 |
| Machine Weight (kg) |
3500 |
Key Components

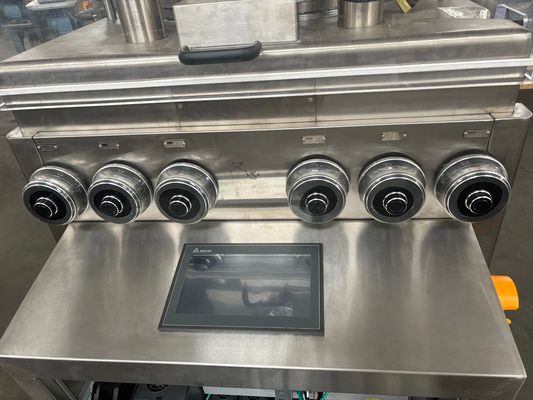

10-inch HMI touch screen (Delta) with multilingual support, pressure display, automatic adjustment, and CFR 21 part 11 compliance
Premium electrical system featuring Delta, Siemens, and Schneider components
Advanced filling servo motor system
Automatic oil & grease lubrication system for punches, tracks, shafts, and bearings
Turret Structure
- Three-part turret construction using HT300 & 2Cr13 materials
- Hardened surface layer for superior wear resistance
- Upper punch with oil catch ring and dust proof ring
- Lower punch with dust proof ring
- Fully enclosed working turret

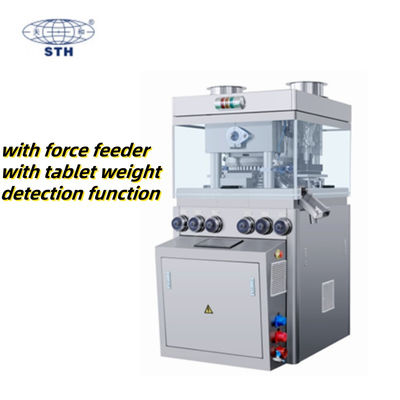

Force Feeder System
- Enhances granule flow and filling precision
- Stainless steel hopper (SS316L) with powder level sensor
- Adjustable powder flow valve
- Food-grade silicone sleeve connection
Safety & Control Systems
- Punch protection sensors automatically stop machine when powder sticks
- Tablet rejection system for quality control
- Comprehensive alarm system
- Emergency stop switch and dust collector connections
Punches & Dies
- TSM-Tooling standard compliant
- Customizable options: round, irregular, concave, bevel-edged, detachable, multi-tipped
- Material options: S7/D2, DC53, 6CrW2Si
- Chrome plated or carbide options available
Packaging & Shipping
- Export-standard wooden packaging (included)
- 15-45 working day delivery
- Multiple transportation options: SEA, AIR, EXPRESS
After Sales Service
- Installation services with all new machine purchases
- On-site engineer support for setup and operation
- Comprehensive technical support and training
