تفاصيل المنتج:
شروط الدفع والشحن:
|
| رقم النموذج: | GZP570 (65) | مادة الآلة: | الصلب الكربوني ، الفولاذ المقاوم للصدأ |
|---|---|---|---|
| محطات الأرقام: | 65 | ماكس الضغط الرئيسي: | 100kn |
| ماكس ما قبل الضغط: | 40kn | قدرة الإنتاج القصوى: | 468000 PCS/H. |
| قوة المحرك: | 11 كيلوواط | أقصى قرص قطر: | قرص مستدير: 11 ملم ، قرص غير منتظم: 13 ملم |
| أقصى عمق ملء: | 15mm | أقصى سمك الجهاز اللوحي: | 6 مم |
| سرعة برج الحد الأقصى: | 60 دورة/دقيقة | الحجم الكلي: | 1420*1200*1850 ملم |
| وزن الآلة: | 3500 كجم | مادة برج: | HT300 و 2CR13 |
| المحرك الرئيسي: | 11kw (ABB) | ||
| إبراز: | 65 Stations Rotary Tablet Press,40kN Pre-Pressure High Speed Tablet Press,11kW Motor Power Pharmaceutical Tablet Press,40kN Pre-Pressure High Speed Tablet Press,11kW Motor Power Pharmaceutical Tablet Press |
||
The GZP570-65 High Speed Rotary Tablet Press Machine is a double-side rotary tablet press designed to press granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, foodstuff, and electronic industries.
| Model | GZP-65 |
|---|---|
| Number Stations | 65 |
| Tooling Standard | BBS |
| Max Main Pressure (KN) | 100 |
| Max Pre-pressure (KN) | 40 |
| Max Tablet Diameter (mm) | Round Tablet: 11 | Irregular Tablet: 13 |
| Max Filling Depth (mm) | 15 |
| Max Tablet Thickness (mm) | 6 |
| Max Turret Speed (r/min) | 60 |
| Max Production Capacity (pcs/h) | 468,000 |

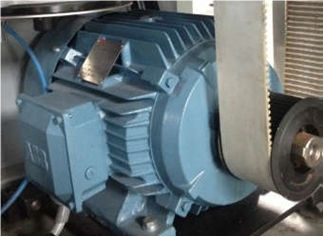

| Motor Power (kw) | 11 |
| Overall Size (mm) | 1420×1200×1850 |
| Machine Weight (kg) | 3500 |
Utilizes international brand components including Delta and Schneider for reliable performance.
Dual lubrication system with oil for punches and tracks, and grease for shafts and bearings.
Directly mounted on main body for stability, featuring double blade wheel feeding disc for strong material adaptability and consistent powder filling.
Special hopper design with rotary valve for precise powder flow control.
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is an innovative manufacturer and total-solution supplier for pharmaceutical processing machines and packaging equipment with over 30 years of experience, exporting to more than 70 countries.
As a high-technology enterprise, we handle all processes from casting to metal machining and final assembly. We are committed to quality control and customer satisfaction, offering customized solutions based on detailed requirements analysis.
